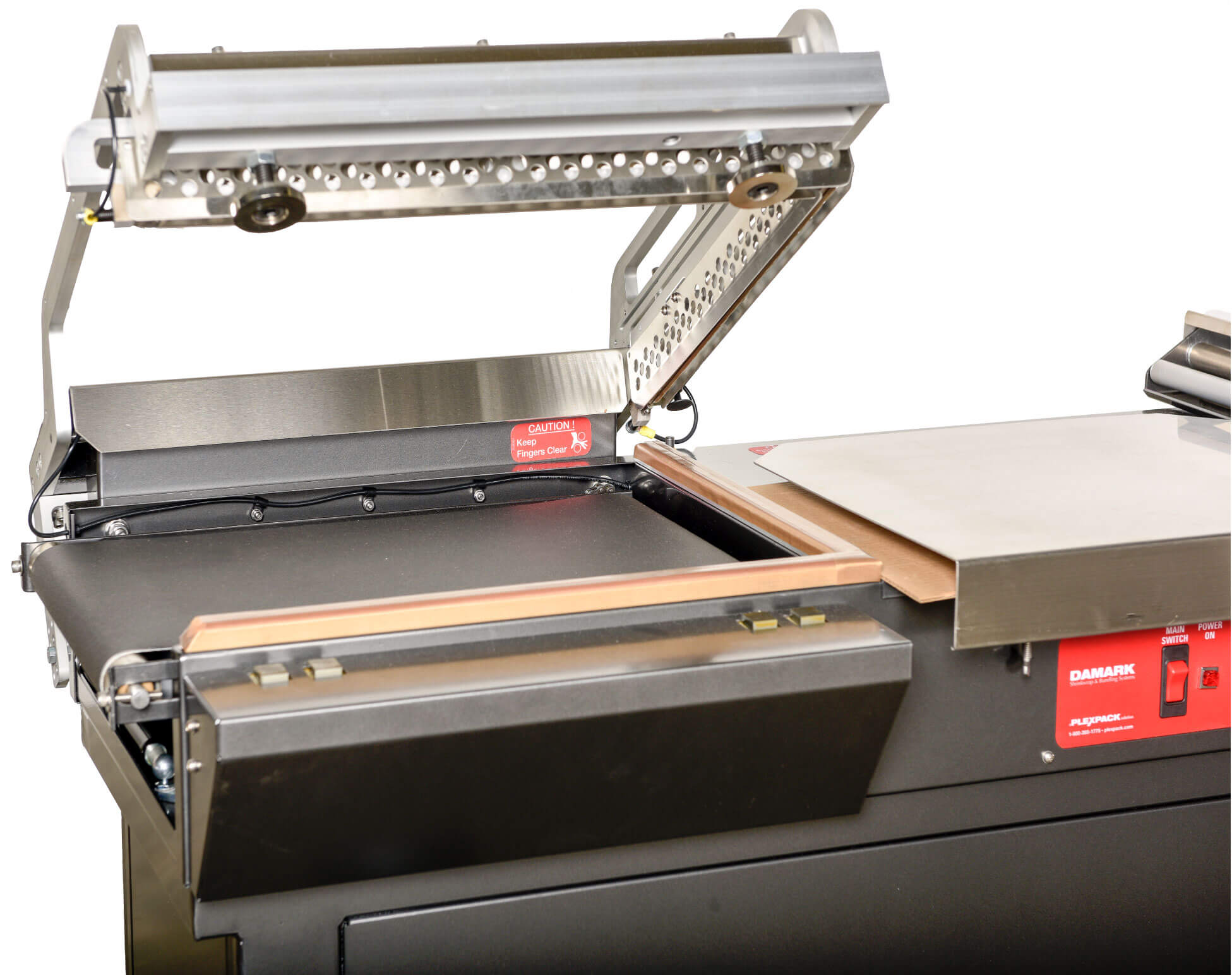

L-Bar Shrink Wrap Sealer | Plexpack

Shrink Wrap Machine

High Quality, Affordable, Shrink Wrap Products Large or Small

Damark is one of the largest manufacturers of L-Bar Sealers in the world. L-Bar Sealers provide a cost-effective solution for tight, crisply wrapped packages and bundles of nearly any type of product, including irregular-shaped or large, oversized items. All Damark L-Bar sealers provide precise adjustments for conveyor speed, dwell time, and seal temperature. Manual and semi-automatic systems provide ergonomic adjustments for simple, safe product loading and quick changeover. Automatic systems provide flexible infeeds and integrate into nearly any packaging operation.

Request a Quote

L-Bar Shrink Wrap Sealer | Plexpack

Key Benefits

Discover the key benefits of our L-Bar sealers:

Thoughtful Design
Thoughtful Design

Counterbalanced Sealing Head

Electromagnetic Seal Bar Hold Down

Quick Change Film System

Easy Maintenance
Easy Maintenance
Simple Maintenance Features
Backed by Plexpack Certain Assist
PLUG & PLAY
PLUG & PLAY

Easy Operation

Simple Digital Controls



L-Bar Shrink Wrap System

L-Bar Shrink Wrap System

Understanding L-Bar Shrink Wrap Sealer

The L-Bar Shrink wrap system is designed with two sealing sides that enclose the packaging film around a product as it passes. The system cuts and seals shrink packaging film with a single action.

Once sealed, the package continues down the conveyor into the shrink tunnel, where heat is used to create an extremely tight enclosure around the product for uniform protection. The shrink-wrap sealer features a perforator roller that leaves small holes in the film and allows trapped air to vent out as the sealed package passes through the tunnel, preventing air bubbles from forming.

Understanding L-Bar Shrink Wrap Sealer

Types of L-Bar Shrink Wrap Sealers

Industrial shrink-wrap machinery is available in three types, each of which has distinct operations that influence the overall wrapping process. When it comes to choosing the right type of L-Bar sealer, you must consider the production rate, operation and cost of each model, among other factors.

Manual L-Bar Sealers

Manual L-Bar sealers involve human labor and are easy to operate. For this machinery, an operator is required to grab and push down the handle to cut and seal the packaging film.

Semi-Automatic L-Bar Sealers

Semi-automatic shrink-wrapping machines require less human operation compared to manual sealers. The machine automatically seals the product after the operator places it in the shrink film. The operator uses a control panel to make adjustments to conveyor speed or temperature as needed.

Semi-Automatic L-Bar Advantage

Semi-automatic L-Bar sealers have higher packaging rates and increased output compared to manual alternatives.

Applications of L-Bar Shrink Wrap Sealers

L-Bar sealers are versatile pieces of machinery that serve various shrink-wrapping packaging applications. These machines create secure, professional-looking packaging for products of different shapes and sizes, making them valuable across many industries. Some industries that utilize the L-Bar shrink-wrap system for packaging include:

  • Food and beverage
  • Printing
  • Construction
  • Electronics
  • Hardware
  • E-commerce
Applications of L-Bar Shrink Wrap Sealers

Advantages of Using L-Bar Shrink Wrap Sealers

When you use L-Bar sealers in your packaging process, you can expect the following advantages:

Improved packaging efficiency:

  • L-Bar sealers offer quick, easy operation that allows for more efficient packaging of products.
  • Cost-effectiveness: L-Bar sealers provide an efficient and cost-effective solution for shrink-wrapping nearly any product.
  • Enhanced product presentation: These machines enclose the shrink film evenly around a product, resulting in clean, visually appealing packaging that enhances product presentation.
Advantages of Using L-Bar Shrink Wrap Sealers

Our Selection of Damark L-Bar Sealers

We offer several types of Damark L-Bar sealers to suit your shrink-wrapping packaging applications.

mp combo system

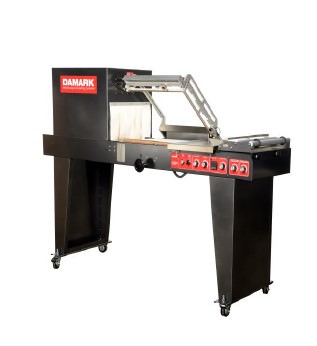

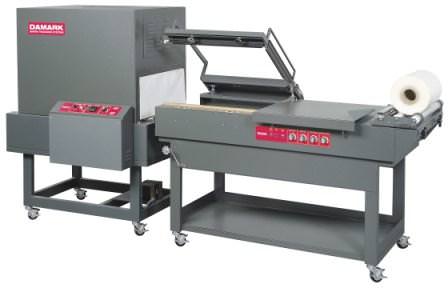

MP Combo System

The Damark MP Series is a complete, economic shrink system with an integrated L Bar Sealer & Shrink Tunnel. The MP Series is available in two main configurations— the MP-2 and the MP-3. The MP-2 includes a standard heavy-gauge welded steel body and legs.

Standard features unique to the MP-2 include:

  • 14 x 18″ seal area
  • An electromagnetic seal jaw hold down
  • 16″ wide by 9″ tall tunnel opening
  • Variable speed Teflon mesh belt conveyor
  • Film perforator roller for vent holes
  • Electronic temperature control on shrink tunnel and top, side, and bottom heat vents
  • The MP-3 system adds a variable speed L-sealer package discharge conveyor to the MP-2’s standard features
Brochure Damark Combo Systems
Video DAMARK | MP3 | Eggs trays
 Dimensions & Construction
Standard
Seal Head Width 14" (35.5 cm)
Seal Head Length 18” (45.7 cm)
 Height at Center 4” (10.1 cm)
 Max Film Width 18" (45.7 cm)
Shrink Tunnel Width 24" (60.9 cm)
Shrink Tunnel Length 16" (40.6 cm)
Shrink Tunnel Height 9" (22.8 cm)
 Construction Aluminum & Stainless
Steel or Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Product Loading Adjustable stainless steel loading platform
Film Rollers

Adjustable film cradle and perforator roller























Operations & Controller
Standard
Power Requirement   220 V 6A
Speed  Operator/Application Dependent
 Infeed Orientation  Left to Right
Discharge Conveyor   Variable Speed



Maintenance
Standard
 Film Changeover Quick Change Film System
 Cleaning  Standard Cleaning & Wipe Down




Options
Hot Knife
 Power Film Unwind
 Teflon Blinds for LDPE
 Infeed Orientation













SMC1620

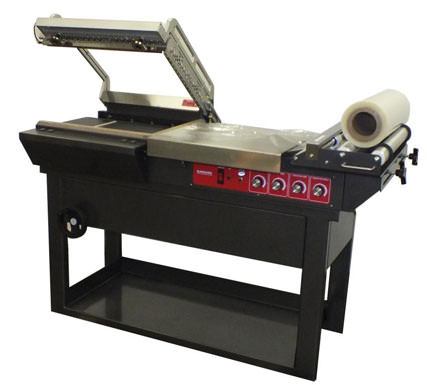

SMC1620

The semi-automatic Damark SMC 1620 L Bar Sealer comes with a 16” x 20” seal area.

Standard features include:

  • An electro-magnetic hold down and air cushion return cylinder
  • A low voltage impulse type sealing system with an innovative electronic control system
  • An adjustable stainless steel product loading platform
  • Film clamps
  • One perforator roller
  • An adjustable speed product discharge conveyor in the seal area
  • A quick change film system that is easily adjustable for different-sized rolls of film up to 20″ long
Brochure Damark LBar Sealers
Video DAMARK | Stainless SMC1620 and STB16 Tunnel
 Dimensions & Construction
Standard
Seal Head Width 16” (40.6 cm)
Seal Head Length 20” (50.8 cm)
 Height at Center 5” (12.7 cm)
 Max Film Width 20” (50.8 cm)
 Construction Aluminum & Stainless
Steel or Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Product Loading Adjustable stainless steel loading platform
Film Rollers

Adjustable film cradle and perforator roller

Flim roll storage shelf























Operations & Controller
Standard
Power Requirement   110 V 12A
Speed  Operator/Application Dependent
 Infeed Orientation  Left to Right
Discharge Conveyor   Variable Speed



Maintenance
Standard
 Film Changeover Quick Change Film System
 Cleaning  Standard Cleaning & Wipe Down




Options
 Pneumatic Seal Bar
Hot Knife
 Power Film Unwind with adjsutable inverting head for easy product handling
 Adjustable Discharge Table
 Teflon Blinds for LDPE
 Infeed Orientation
 Roller Bed Infeed
 Roller Bed Takeaway
 Air Table Loading System
Shrink Tunnels

























SMC2228

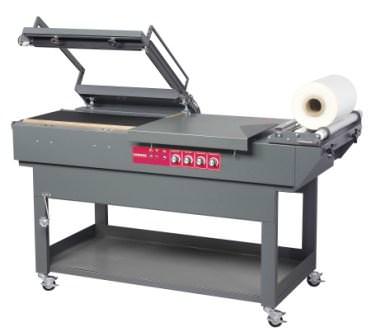

SMC2228

The semi-automatic Damark SMC 2228 L Bar Sealer comes with a 20” x 28” seal area.

Standard features include:

  • An electro-magnetic hold down and air cushion return cylinder
  • A low voltage impulse type sealing system with an innovative electronic control system
  • An adjustable stainless steel product loading platform
  • Film clamps
  • One perforator roller
  • An adjustable speed product discharge conveyor in the seal area
  • A quick change film system that is easily adjustable for different-sized rolls of film up to 28″ long
Brochure Damark LBar Sealers
Video DAMARK | SMC 2228 HK X2 | Toilet seats
 Dimensions & Construction
Standard
Seal Head Width 20” (50.8 cm)
Seal Head Length 28” (71.2 cm)
 Height at Center 6” (15.24 cm)
 Max Film Width 28” (71.2 cm)
 Construction Aluminum & Stainless
Steel or Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Product Loading Adjustable stainless steel loading platform
Film Rollers

Adjustable film cradle and perforator roller

Flim roll storage shelf





















Operations & Controller
Standard
Power Requirement   220 V 6A
Speed  Operator/Application Dependent
 Infeed Orientation  Left to Right
Discharge Conveyor   Variable Speed



Maintenance
Standard
 Film Changeover Quick Change Film System
 Cleaning  Standard Cleaning & Wipe Down






Options
 Pneumatic Seal Bar
Hot Knife
 Power Film Unwind with adjsutable inverting head for easy product handling
 Adjustable Discharge Table
 Teflon Blinds for LDPE
 Infeed Orientation
 Roller Bed Infeed
 Roller Bed Takeaway
 Air Table Loading System
Shrink Tunnels



















SMC3042

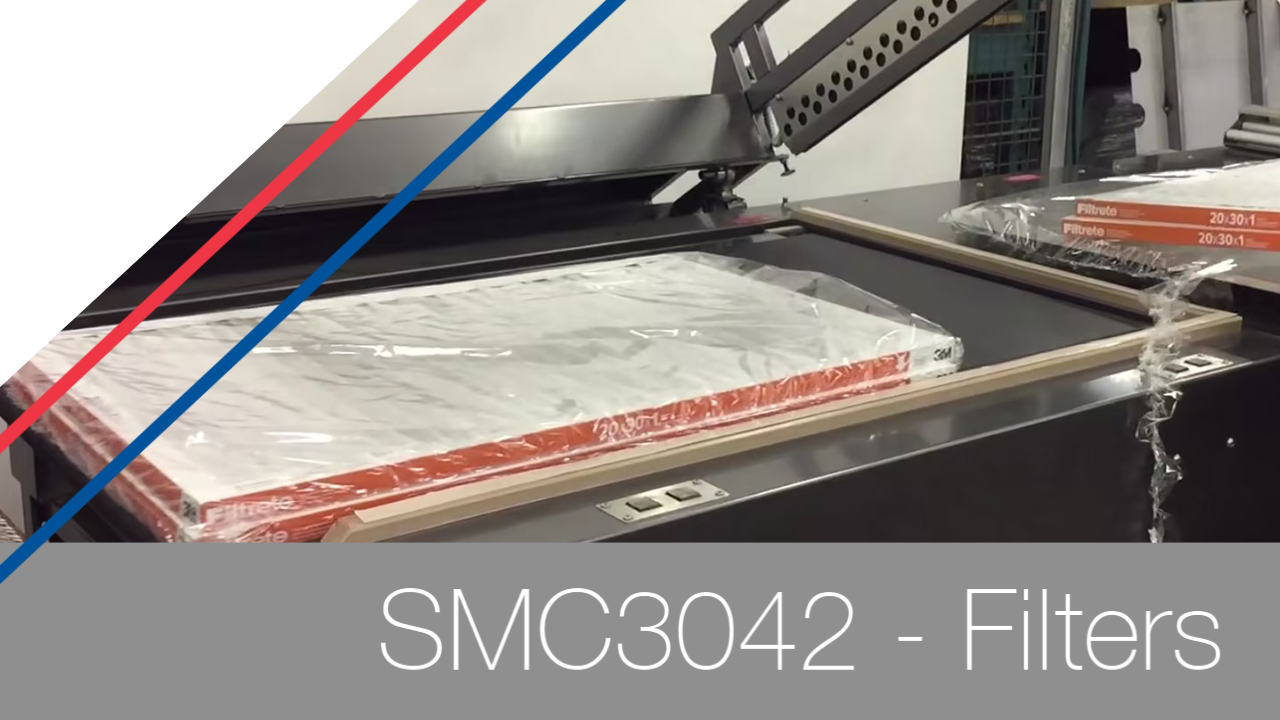

SMC3042

The semi-automatic Damark SMC3042 L Bar Sealer comes with a 30” x 42” seal area.

Standard features include:

  • An electro-magnetic hold down and air cushion return cylinder
  • A low voltage impulse type sealing system with an innovative electronic control system
  • An adjustable stainless steel product loading platform
  • film clamps
  • One perforator roller
  • An adjustable speed product discharge conveyor in the seal area
  • A quick change film system that is easily adjustable for different-sized rolls of film up to 42″ long
Brochure Damark LBar Sealers
Video DAMARK | SMC 3042 | Semi-Automatic L Bar Sealer
 Dimensions & Construction
Standard
Seal Head Width 30” (76.2 cm)
Seal Head Length 42” (106.6 cm)
 Height at Center 20” (50.8 cm)
 Max Film Width 42” (106.6 cm)
 Construction Aluminum & Stainless
Steel or Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Product Loading Adjustable stainless steel loading platform
Film Rollers

Adjustable film cradle and perforator roller

Flim roll storage shelf





















Operations & Controller
Standard
Power Requirement   220 V 6 A
Speed  Operator/Application Dependent
 Infeed Orientation  Left to Right
Discharge Conveyor   Variable Speed



Maintenance
Standard
 Film Changeover Quick Change Film System
 Cleaning  Standard Cleaning & Wipe Down






Options
 Pneumatic Seal Bar
Hot Knife
 Power Film Unwind with adjsutable inverting head for easy product handling
 Adjustable Discharge Table
 Teflon Blinds for LDPE
 Infeed Orientation
 Roller Bed Infeed
 Roller Bed Takeaway
 Air Table Loading System
Shrink Tunnels



















Custom lbar sealers

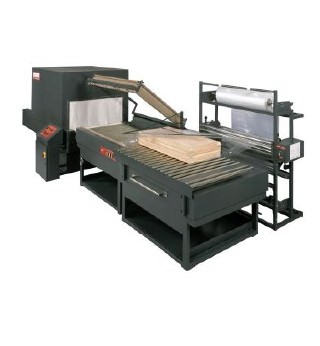

Custom LBar Sealers

Plexpack manufactures custom Damark L-Bar Sealers with seal widths up to an incredible 50” (127 cm) and seal lengths up to an amazing 110” (279.4 cm). Many custom L-Bar Sealers include Power Film Unwind with an adjustable inverting head for improved product handling of large or awkward items.

Standard features include:

  • An electro-magnetic hold down and air cushion return cylinder
  • A low voltage impulse type sealing system with an innovative electronic control system
  • An adjustable stainless steel product loading platform
  • Film clamps
  • One perforator roller
  • An adjustable speed product discharge conveyor in the seal area
  • A quick change film system that is easily adjustable for different-sized rolls of film up to 28″ long.
Brochure Damark LBar Sealers
Video Damark LBar 50 x 100 - Mirrors
 Dimensions & Construction
Standard
Seal Head Width 22” (76.2 cm) to 50" (127 cm)
Seal Head Length 42” (106.6 cm) to 110" (279.4 cm)
 Height at Center 20” (50.8 cm)
 Max Film Width 110” (279.4 cm)
 Construction Aluminum & Stainless
Steel or Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Product Loading Adjustable stainless steel loading platform
Film Rollers

Adjustable film cradle and perforator roller

Flim roll storage shelf























Operations & Controller
Standard
Power Requirement   220 V 6 A
Speed  Operator/Application Dependent
 Infeed Orientation  Left to Right or Right to LEft
Discharge Conveyor   Variable Speed
Power Film Unwind Standard on Custom Models



Maintenance
Standard
 Film Changeover Quick Change Film System
 Cleaning  Standard Cleaning & Wipe Down






Options
 Pneumatic Seal Bar
Hot Knife
 Power Film Unwind with adjsutable inverting head for easy product handling
 Adjustable Discharge Table
 Teflon Blinds for LDPE
 Infeed Orientation
 Roller Bed Infeed
 Roller Bed Takeaway
 Air Table Loading System
Shrink Tunnels

























Connect With Our Team

To learn more about our L-Bar sealers, contact us online or fill out the form below today.
