Heat Shrink Tunnel

Shrink Tunnels For Consistent, Attractive Packaging

Damark heat shrink tunnels are a Plexpack packaging solution designed to produce consistent, high-quality packaging for products of nearly any size. We carry a wide range of Damark shrink tunnels with various configurations, from single zone to custom options, to suit your products and packaging needs. These machines offer a cost-effective solution to increasing production while ensuring a uniform shrink rate for each package.

Shrink Tunnel | Plexpack Packaging Equipment

Key Benefits

Explore the key benefits of our Damark shrink tunnels:

Custom Tunnels
Custom Tunnels



  • Numerous customization options
Simple Maintenance & Operation
Simple Maintenance & Operation



  • Minimal maintenance required
  • Easy-to-use digital control systems
Reliable Performance
Reliable Performance



  • Efficient shrink wrapping
  • Uniform results

Shrink Wrap Tunnels

A Damark shrink-wrap tunnel consists of a conveyor belt that carries a product as it travels through the heated area. Heavy-duty, variable-speed turbo fans and heating elements heat the shrink film to create consistent, tight packaging around a product. Regardless of the width, length or overall size of your products, these tunnels provide streamlined and efficient shrink wrapping.

Our shrink tunnels can be used in conjunction with Damark shrink-wrapping systems for uniform packaging.

Open Vimeo video

Shrink Wrap Tunnels

Our Selection of Damark Heat Shrink Tunnels

Plexpack offers several Damark shrink tunnels with superior performance and various features to support many applications.

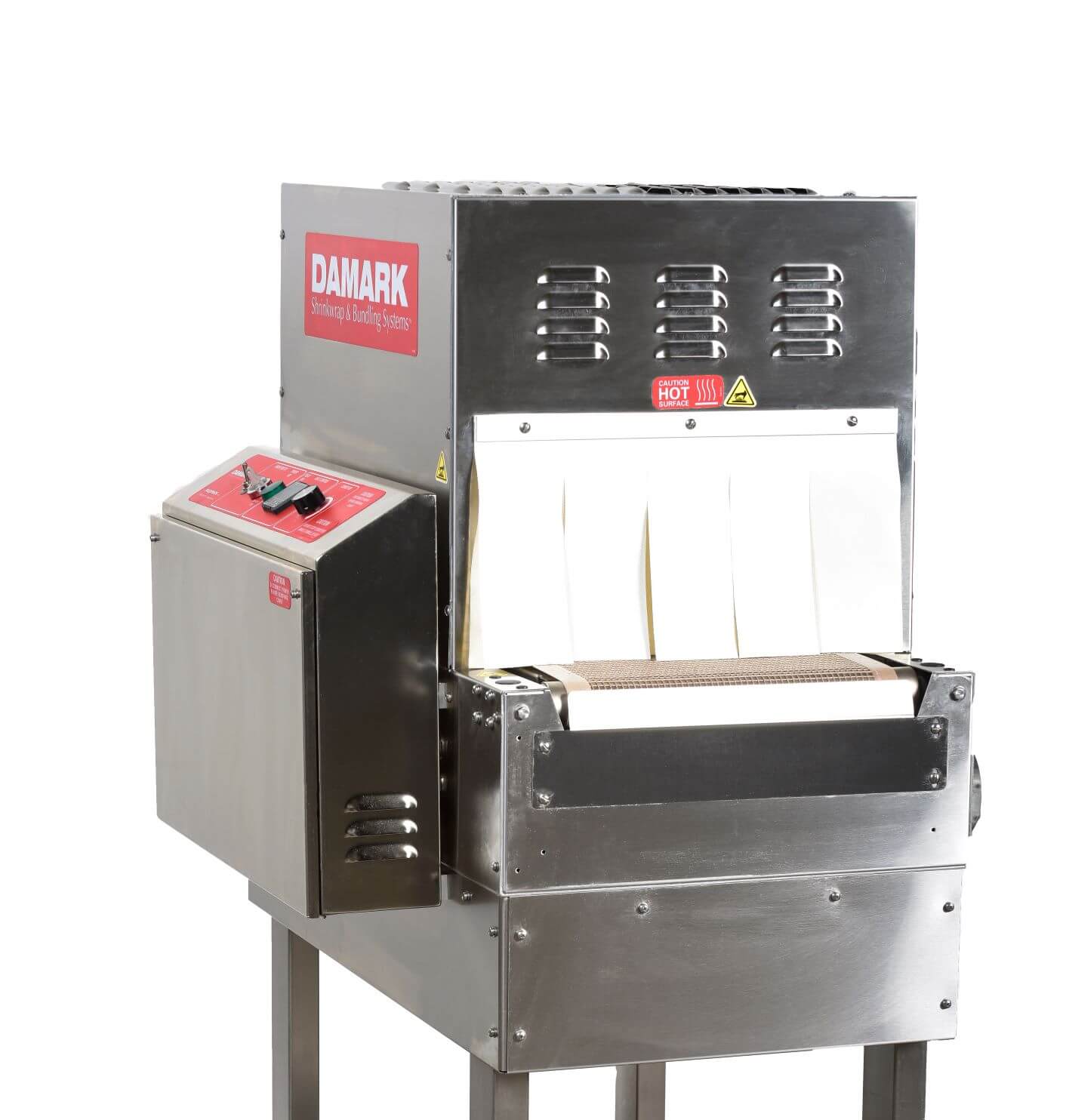

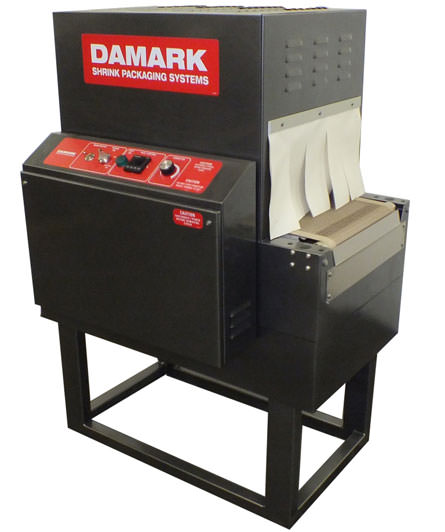

STB/STR

ST Series

The Damark ST Series is the perfect solution for items that need to be enclosed in film. These tunnels are highly efficient and have a small footprint, allowing you to maximize floor space. The Damark ST Series has a standard width of 16 inches with tunnels that are 9 or 12 inches tall to accommodate products of varying heights.

The standard features of our Damark ST Series include:

  • Heavy gauge steel body, welded tubular steel frame and base
  • PID electronic temperature controller to ensure a constant tunnel temperature
  • Variable speed conveyor system
  • Automatic shutdown cycle
  • A bottom shrink section that ensures perfect all-around shrink
Brochure Damark Shrink Tunnels
Video SMC1620 with STB16
 Dimensions & Construction
Standard
Chamber Opening Width 16" (40.64 cm)
Chamber Opening Length 20” (50.8 cm)
 Chamber Opening Height 9" (22.8 cm) - 12" (30.4 cm)
 Max Temperature 180 C
Belting Teflon
Zone Single
Oven Type Convection
Convection Type Underflow















Operations & Controller
Standard
Power Requirement   220 V 6A 1Phase
Speed  30' per minute
Automatic Cool Down Standard
Controls

Digital Temperature

Adjustable Speed



Maintenance
Standard
 Cleaning  Standard Cleaning & Wipe Down








Options
Stainless Steel or Painted Steel
Rollers

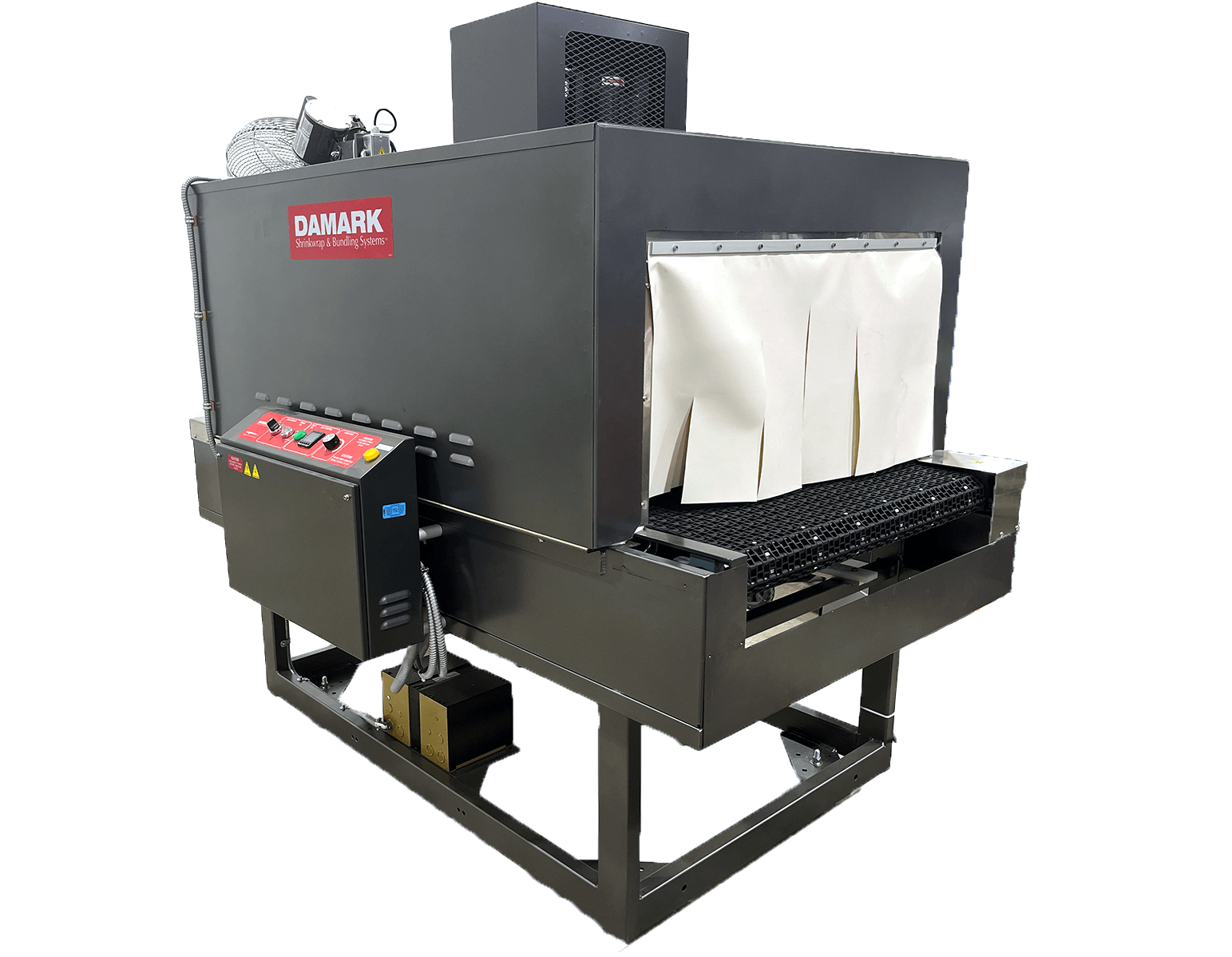

szx shrink tunnel

SZX

The Damark SZX Series single-zone shrink tunnels are versatile and can operate independently or in conjunction with our SMC L-Bar Sealers, B Series Tray Wrappers & Bundlers, or FS Series Horizontal Shrink Wrappers. Available in two widths—24” and 34”—all SZX shrink tunnels feature a standard length of 58” and a chamber height of 16”.

The SZX Series also offers a choice of tunnel conveyor options to suit specific applications:

  • Live Rollers for polyolefin packaging
  • Dead Rollers for polyethylene packaging
  • Polymer Mesh Belt for small or unstable products
Brochure Damark Shrink Tunnels
Video Damark SZ Tunnel
 Dimensions & Construction
Standard
Chamber Opening Width 24" (60.9 cm) / 34" (86.3 cm)
Chamber Opening Length 58" (147.3 cm)
 Chamber Opening Height 16" (40.64 cm)
 Max Temperature 200 C
Belting Polymer Mesh Belt
Zone Single
Oven Type Convection
Convection Type Underflow
Casters Lockable Casters





















Operations & Controller
Standard
Power Requirement   220 V 1 Phase
Speed  30' per minute
Automatic Cool Down Standard
Turbo Fan Standard
Controls

Digital Temperature

Adjustable Speed and Air Flow



Maintenance
Standard
 Cleaning  Standard Cleaning & Wipe Down








Options
Stainless Steel Belting
Live Roller
Dead Rollers

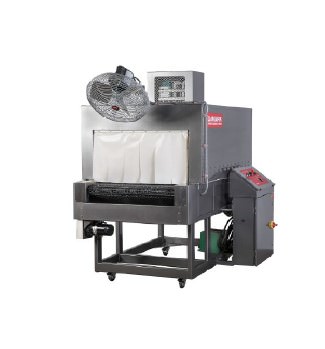

sz shrink tunnel

SZ

The Damark SZ Series single-zone shrink tunnels are designed for standalone use or integration with our SMC L-Bar Sealers, B Series Tray Wrappers & Bundlers, or FS Series Horizontal Shrink Wrappers. These tunnels are available in two widths—24” and 34”—and feature a standard length of 58”, with chamber height options of 16” or 28”.

To meet diverse packaging requirements, the SZ Series offers a selection of tunnel conveyors:

  • Live Rollers for polyolefin materials
  • Dead Rollers for polyethylene materials
  • Polymer Mesh Belt for handling small or unstable items
Brochure Damark Shrink Tunnels
Video Damark SZ Tunnel
 Dimensions & Construction
Standard
Chamber Opening Width 24" (60.9 cm) / 34" (86.3 cm)
Chamber Opening Length 58" (147.3 cm)
 Chamber Opening Height 16" (40.64 cm) / 28 (71.12 cm)
 Max Temperature 200 C
Belting Polymer Mesh Belt
Zone Single
Oven Type Convection
Convection Type Underflow
Casters Lockable Casters





















Operations & Controller
Standard
Power Requirement   220 V 3 Phase
Speed  30' per minute
Automatic Cool Down Standard
Turbo Fan Standard
Controls

Digital Temperature

Adjustable Speed and Air Flow



Maintenance
Standard
 Cleaning  Standard Cleaning & Wipe Down








Options
Stainless Steel Belting
Live Roller
Dead Rollers
Custom Voltage/Phase from 460 V - 575 V 3 Phase

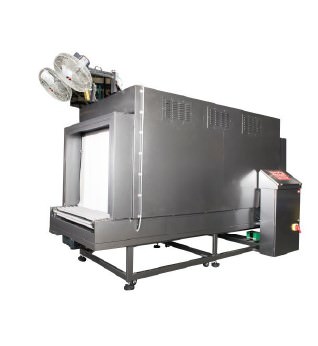

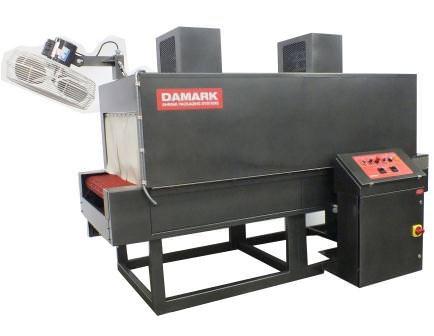

dz shrink tunnel

DZ

The Damark DZ Series of dual zone shrink tunnels can be used on their own or with our SMC L Bar Sealers, our B Series Tray Wrappers & Shrink Bundlers, our INSTAWRAP Full Enclosure Shrink Wrapper, or our FS Series Horizontal Shrink Wrappers. The DZ Series is offered in two different widths: 34”, or 44” and three different chamber heights: 16", 20" or 28" . All DZ Shrink tunnels are 97” long. The DZ series is supplied with your choice of the following tunnel conveyor:

  • Live Rollers for polyolefin applications
  • Dead Rollers for polyethylene applications
  • Polymer Mesh Belt for small or unstable products
Brochure Damark Shrink Tunnels
Video Damark DZ Tunnel
 Dimensions & Construction
Standard
Chamber Opening Width 34" (86.3 cm) / 44" (111.7 cm)
Chamber Opening Length 97" (246.28 cm)
 Chamber Opening Height 16" (40.64 cm) / 20'' (50.8 cm) / 28" (71.12 cm)
 Max Temperature 200 C
Belting Polymer Mesh Belt
Zone Dual
Oven Type Convection
Convection Type Underflow
Casters Lockable Casters

















Operations & Controller
Standard
Power Requirement   220 V 3 Phase
Speed  50' per minute
Automatic Cool Down Standard
Turbo Fan Standard
Controls

Digital Temperature

Adjustable Speed and Air Flow



Maintenance
Standard
 Cleaning  Standard Cleaning & Wipe Down








Options
Stainless Steel Belting
Live Roller
Dead Rollers
Custom Voltage/Phase from 460 V - 575 V 3 Phase

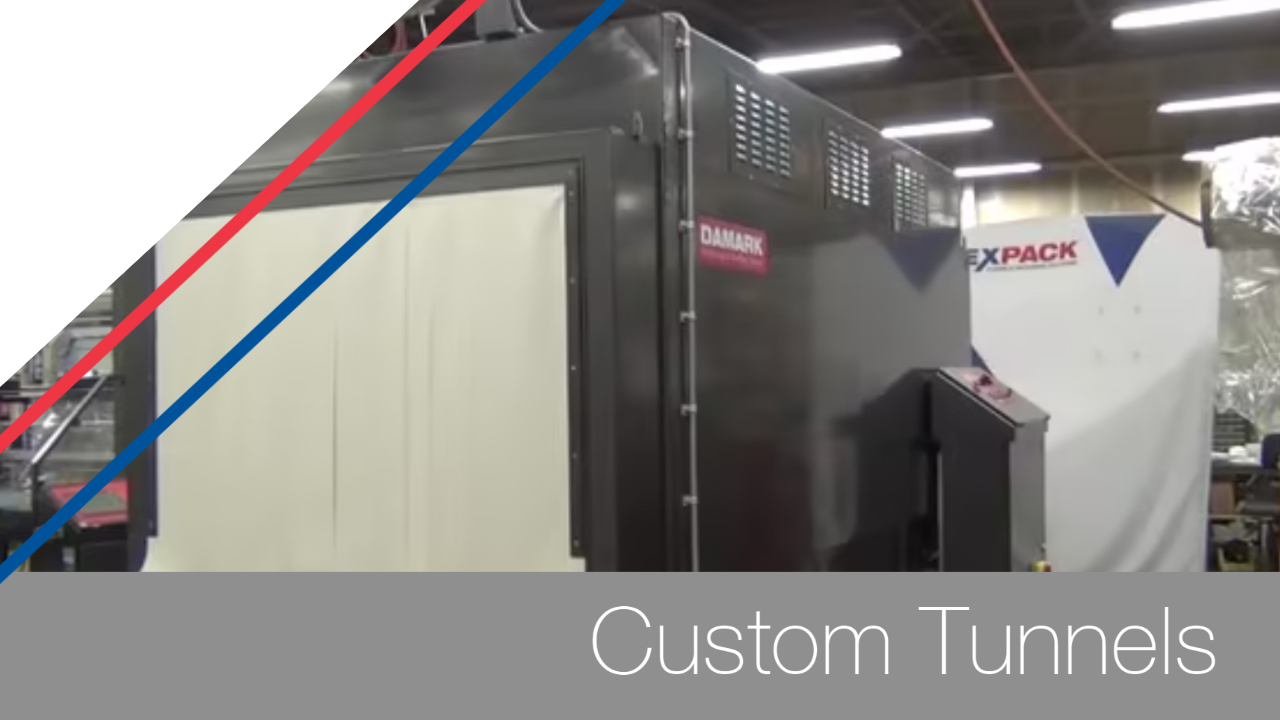

Custom Tunnels

Custom Tunnels

Plexpack offers custom-built Damark Shrink Tunnels to fit your needs. Designed from our standard shrink tunnels, our custom tunnels feature the same trusted reliability. With numerous features and options, we will work with you to provide the shrink solution that fits your requirements.

Brochure Damark Shrink Tunnels
Video Custom Damark Tunnels
 Dimensions & Construction
Standard
Chamber Opening Width 54" (137.1 cm), 64" (162.5 cm), or 74" (187.9 cm)
Chamber Opening Length 96" - 172" (243.8 cm - 436.8 cm)
 Chamber Opening Height 20" (50.8 cm)
 Max Temperature 200 C
Belting Polymer Mesh Belt
Zone Dual
Oven Type Convection
Convection Type Underflow
Casters Lockable Casters





















Operations & Controller
Standard
Power Requirement   220 V - 575 V 3 Phase
Speed  50' per minute
Automatic Cool Down Standard
Turbo Fan Standard
Controls

Digital Temperature

Adjustable Speed and Air Flow



Maintenance
Standard
 Cleaning  Standard Cleaning & Wipe Down








Options
Tunnel Height Increases by 4" (10.1 cm) increments
Stainless Steel Belting
Live Roller
Dead Rollers



















Applications for Shrink Tunnels

Shrink tunnels play a significant role in the shrink-wrap packaging process. These machines help create secure, even packaging, enhancing the overall product presentation. Since the process is quick and effective, many industries use heat shrink tunnels to package products of nearly any size. Some of those industries include:

  • Food and beverage

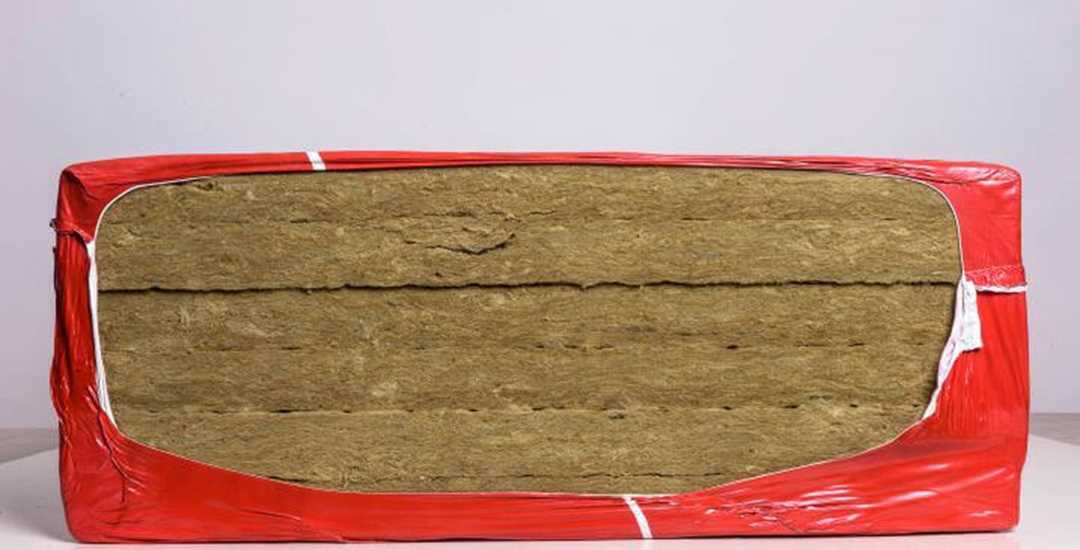

  • Construction Materials
  • Industrial products
  • Household care
Applications for Shrink Tunnels

Contact Plexpack for Shrink Packaging Solutions

At Plexpack, we design and manufacture high-quality solutions to support packaging needs across various industries. Our Damark shrink tunnels are built with quality and reliability in mind to provide the best possible results.

In addition, we ensure that our system allows you to easily monitor and manage crucial controls to ensure product integrity while streamlining your operations. Contact us today for more information about our heat shrink tunnels.
